- Provides accurate measurements of ozone from a few parts-per-billion by volume (ppb) to an upper limit of 100 parts-per-million (ppm) based on UV absorption
- Standard OEM configuration makes use of the user’s ozone system pump to supply the air sample
- Lightweight (2.0 lb, 0.89 kg) and has a low power consumption (~2 watt) relative to conventional instruments
- Requires minimal maintenance, making it well suited for monitoring of ambient ozone and monitoring/control of ozone in industrial settings
- Available in configurations including Enclosure with Pump and our AQLite Air Monitoring Package
- Please contact us to discuss the best configuration for your application
Model 108-L Ozone Monitor
The Model 108-L Ozone Monitor is a versatile EPA-certified Federal Equivalent Method (FEM) for monitoring ambient ozone. The instrument is designed for easy integration into existing ozone or air monitoring systems. With an incredibly small footprint, the Model 108-L is a unique instrument with its ability to provide highly reliable ozone data at a size that makes it easy to incorporate into an existing product.
- Measurement range of 0-100 ppm with an accuracy/precision of 1.5 ppb
- EPA-certified as a FEM for regulatory compliance monitoring in accordance with the Clean Air Act (EQOA-0914-218)
- Available in three user-friendly configurations to meet a variety of ozone monitoring needs
Overview
Product Enclosures

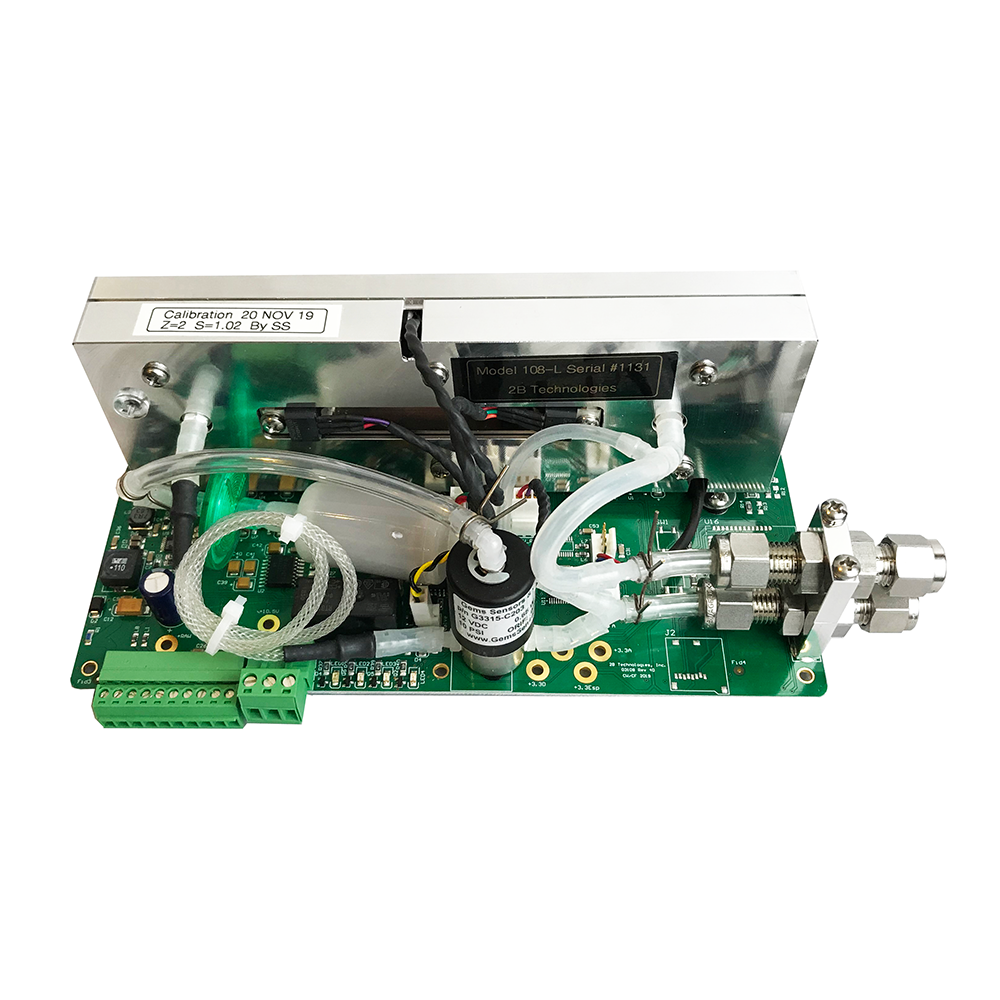

Standard OEM
Suitable for either mounting in a custom enclosure or using as a component of a larger system.
Ā
- Dimensions (Height x Width x Depth):Ā 8.7 Ć 4.0 Ć 3.0 in (22 Ć 10 Ć 7.6 cm)Ā Ā Ā Ā Ā
- Weight: 2.0 lb (0.89 kg)
- Power Requirements: 11-28 VDC, nominally 165 mA at 12 V; 2.0 watt
- Relay: one 2-Level
- Federal Equivalent Method (FEM)
- DewLineā¢ for Humidity Control
- Robust and easy to service

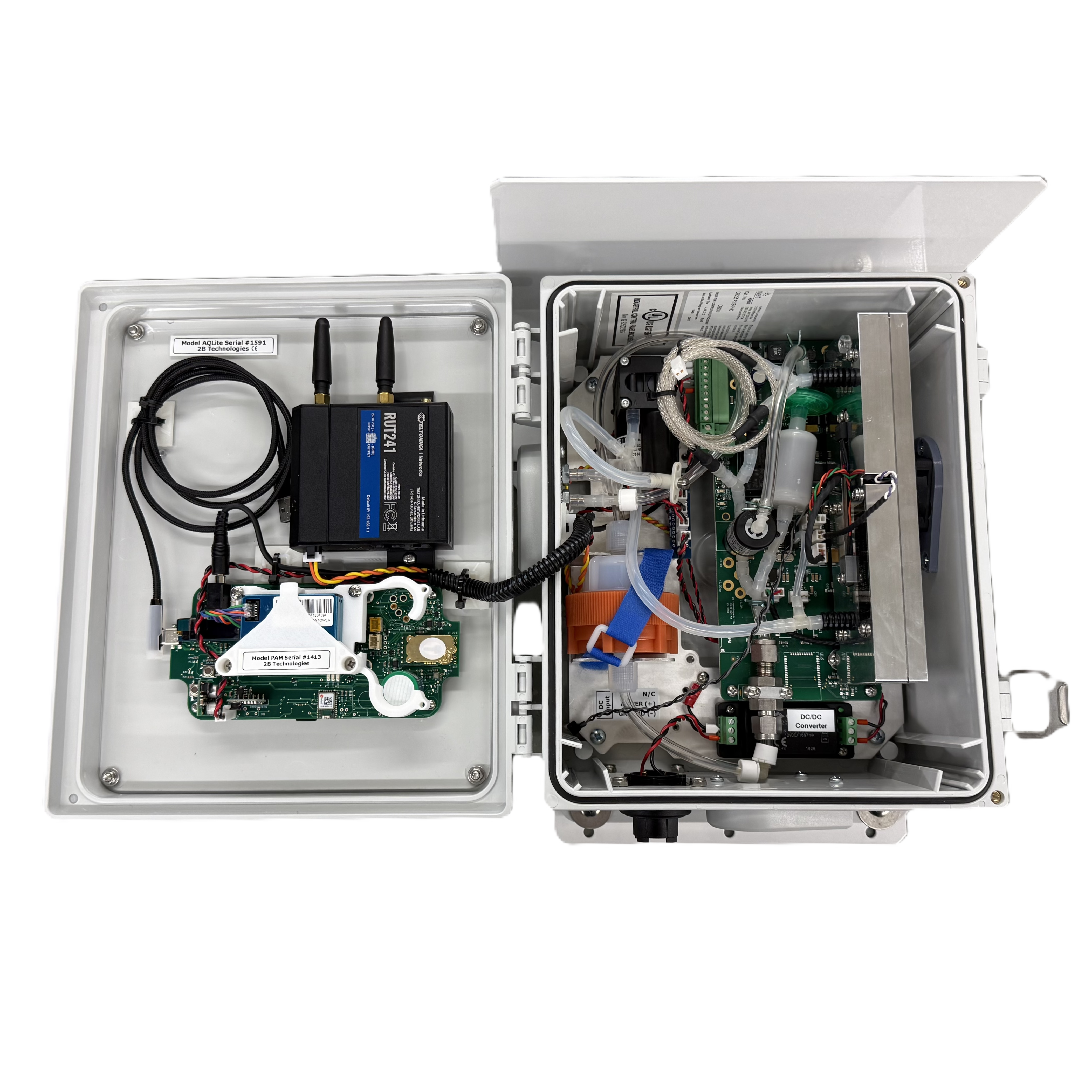

108-L AQLite Package
Water-resistant enclosure suitable for workplace health and safety monitoring where ozone is being produced and used in a wide range of applications (below).
Ā
- Dimensions:
16″ H x 14″ W x 9.3″ D
(40.7 x 35.7 x 23.6 cm) - Weight: Approx. 14 lb / 6.3 kg
(depends on multi-channel options) - Power Requirements: 11-28 VDC, nominally 165 mA at 12 V; 2.0 watt
- Relay: one 2-Level
- Federal Equivalent Method (FEM)
- DewLineā¢ for Humidity Control
- Robust and easy to service
Enclosure with Pump
Suitable for either mounting in a custom enclosure or using as a component of a larger system.
Ā
- Includes miniature air pump
- Dimensions (Height x Width x Depth):Ā 2.5 x 7 x 9 inches / 6.2 x 17.8 x 22.9 cm
- Weight: 2.8 lb / 1.3 kg
- Power Requirements: 11-28 VDC, nominally 165 mA at 12 V; 2.0 watt
- Relay: one 2-Level
- Federal Equivalent Method (FEM)
- DewLineā¢ for Humidity Control
- Robust and easy to service
- Accurate ozone measurements based on UV absorption
- Low power consumption (ā2.0 watt)
- Small footprint designed for easy integration into ozone systems
- 4-s response time (2–s measurement interval)
- Relay with 2 set points (based on userās ozone set points)
- 0–2.5 V, 4–20 mA analog outputs
- RS232 Output
- Bluetooth upgrade available
- WiFi data access available
- Higher measurement ranges are offered in other instruments in our Model 108 Series Ozone Monitors
- Please inquire about our Model 108-M (20 ppb ā 1000 ppm), Model 108-MH (100ppb ā 10,000 ppm), or Model 108-H (0.02 wt% ā 20wt%)
- Model 108-L Ozone Monitor with 3-pin relay connector attached
- 1.25A power adapter
- Terminal strip connector (10-pin) wired with serial port connector (9PinM) and power jack (barrel)
- Serial cable (9PinF-9PinF)
- External ozone scrubber
- USB flash drive preloaded with operation manual and other useful documentation
- NIST-traceable calibration certificate
- Integration into air quality monitoring systems to provide an accurate and reliable measurment of ambient ozone
- Replacement of HMOS and Electrochemical sensors in an existing ozone system
- Monitoring ozone exposure of individuals in the workplace
- Monitoring and control of ozone in industrial settings
- Incorporation into ozone disinfection systems
- Long-term monitoring at remote locations where power is highly limited
Specifications
Spec Sheet
| Measurement Principle | UV Absorption at 254 nm, single beam |
| Federal Equivalent Method (FEM) | Yes, modification to EQOA-0914-218 |
| Linear Dynamic Range | 0-100,000 ppb (0-100 ppm) |
| Resolution | 0.1 ppb |
| Precision (1Ļ for 10-s average; aka rms noise) | Greater of 1.5 ppb or 2% of Reading |
| Limit of Detection (10-s average, 2Ļ) | 3.0 ppb |
| Accuracy | Greater of 1.5 ppb or 2% of Reading |
| Calibration | NIST Traceable; Annual calibration recommended |
| Measurement Time, Frequency | 2 s, 0.5 Hz |
| Data Averaging Options | 10 s, 1 min, 5 min, 1 hr |
| Response Time, 100% of Step Change | For 2-s output: 4 s, 2 data points For 10-s output: 20 s, 2 data points |
| Adaptive Filter | Available, user-specified parameters |
| Data Transfer Baud Rate | 2400 |
| Ozone Units | ppb, pphm, ppm, Āµg m-3, mg m-3 |
| Temperature Units | oC, oF, K |
| Pressure Units | mbar, torr, psi |
| T and P Corrected | Yes |
| DewLineā¢ for Humidity Control | Yes |
| Operating Temperature Range | 0 to 50oC (0 to 40oC for FEM) |
| Flow Rate | Minimum required: 0.6 L/min; Nominal: 1 L/min; Maximum: 1.5 L/min |
| Data Outputs | RS232; 0-2.5 V, 4-20 mA |
| Power Requirements | 11-28 V DC, nominally 165 mA at 12 V DC, 2 watt |
| Relay with 2 Setpoints | Yes, responds based on user’s ozone set points |
| Size | 8.7 x 4.0 x 3.0 inches (22 x 10 x 7.6 cm) |
| Weight | 2.0 lb (0.89 kg) |
| Options | Pump, Enclosure, Bluetooth, WiFi, AQLite packages |
Downloads
Support
Call Us
+1 (303) 273-0559
Tech Support
Open a Ticket
Case Studies
In Atlanta, Georgia, the AQEarth team includes Community Health Aligning Revitalization Resilience & Sustainability (CHARRS) and West Atlanta Watershed Alliance (WAWA) in a project consisting of both air monitoring and community education. The collective aim is to bring community members together around air quality issues in West Atlanta neighborhoods. 2B Tech’s AQSync was installed to make high-quality measurements of pollutants that are accessible to residents online. Residents of all ages are exploring local air quality in neighborhoods using handheld personal air monitors (PAMs).
The Model 108-L has been integrated into the STERISAFE PRO system, which uses fumigations with high amounts of gas-phase ozone to disinfect surfaces and destroy viruses and bacteria. The integrated relay and the wide measurement range of the Model 108-L (0-100 ppm) make it possible for one instrument to serve two purposes critical to the disinfection process: monitoring the high ozone concentrations needed to ensure disinfection, and also monitoring low ozone concentrations to determine when safe levels are re-established at the end of fumigation.
