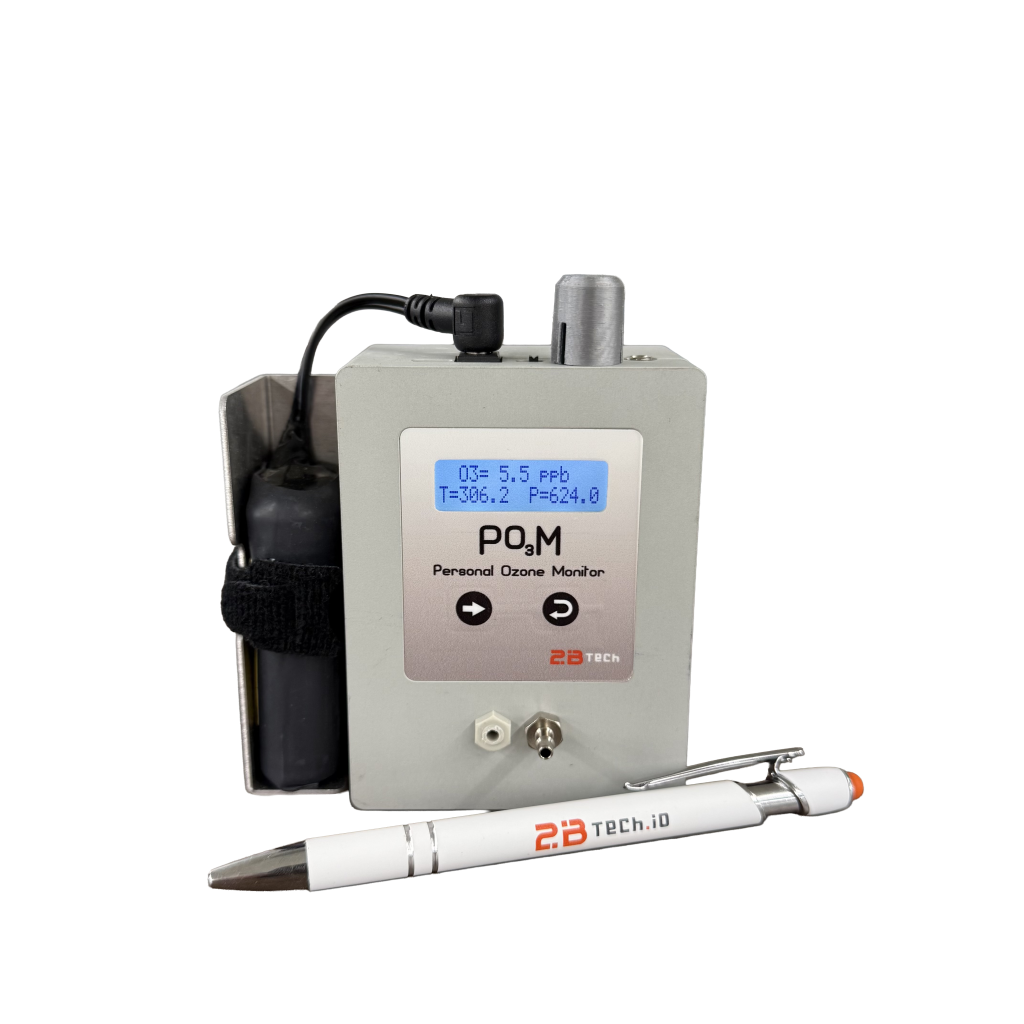

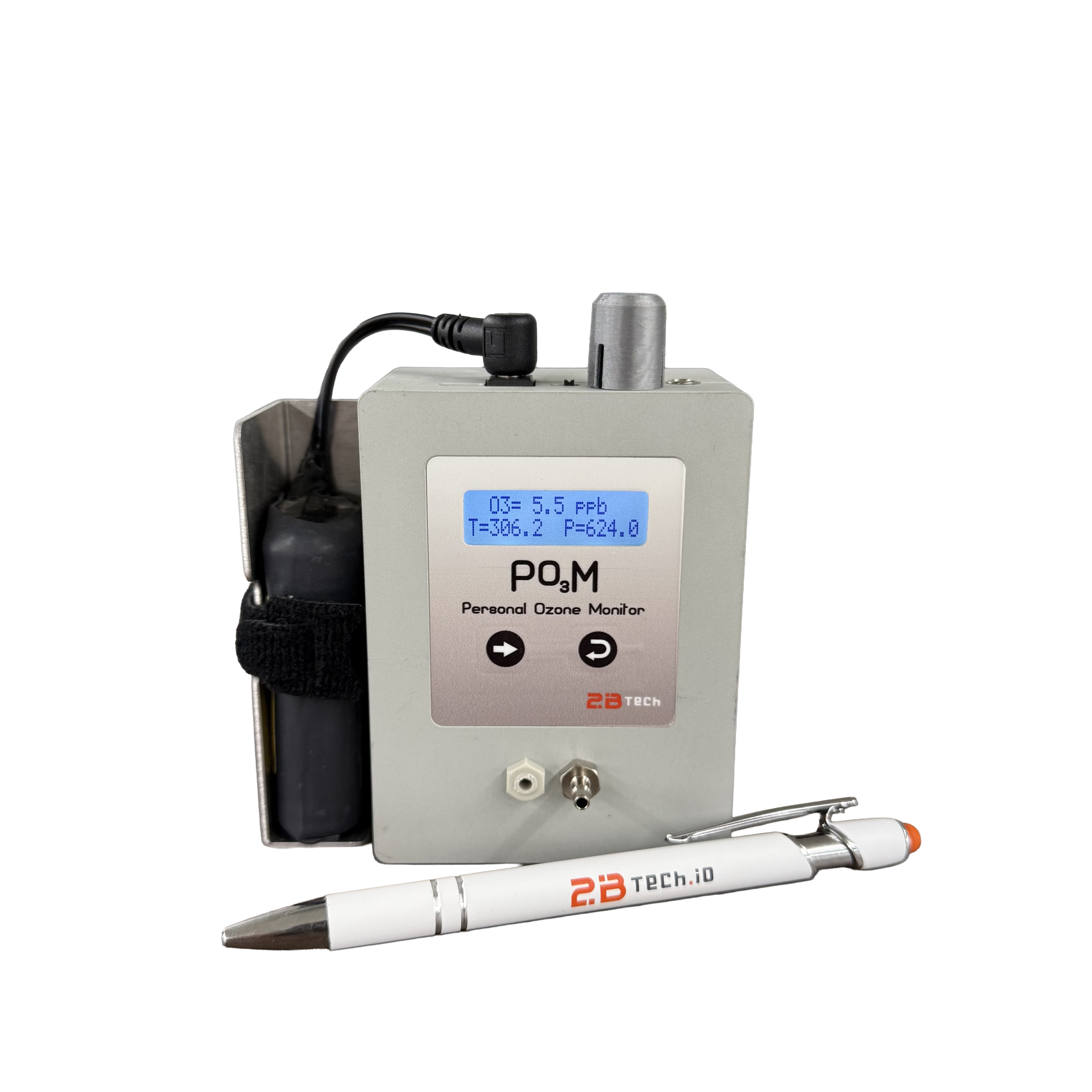

Personal Ozone Monitor (POM)

2B Tech has taken the next step in miniaturization of UV-based ozone monitors by developing the “world’s smallest ozone analyzer.” The POM is a handheld EPA-certified Federal Equivalent Method (FEM) ozone monitor that utilizes the measurement technique of UV absorption. The instrument is capable of providing highly accurate/precise ozone measurements in a package that is unique to the ambient ozone monitoring market.

0-10 ppm measurement range with 1.5 ppb precision
Handheld with battery and GPS
EPA designated as a Federal Equivalent Method (FEM) for ozone: EQOA–0815–227.

Overview

POM unit has dimensions of 4 x 3 x 1.5 inches and weighs only 0.8 lb/360 g (without battery) or 1.0 lb/450 g (with battery)
Built-in GPS so that ozone measurements may be logged continuously along with geographic location
Folded “U” shaped optical path, allowing the instrument to achieve the same path length as the Models 106-L, 202, and 205
Read our paper on the POM, published in Analytical Chemistry:

Miniature Personal Ozone Monitor Based on UV Absorbance, P.C. Andersen, C.J. Williford and J.W. Birks, Analytical Chemistry 82, 7924-7928 (2010).

Small (palm-sized)
Lightweight (~1 lb)
Same measurement principle (UV absorbance) and similar precision (~1.5 ppb) as much larger instruments
Approved as a Federal Equivalent Method (FEM) (EQOA-0815-227)
Measure ozone up to 10,000 ppb (10 ppm)
Belt clip and compact lithium-ion battery pack in side bracket for extreme portability
Adapters enable 100-240 VAC or 12V battery operation
Low power requirement: 3 watt
Internal data logger
Built-in GPS logs location along with ozone measurements
Fast 2-s or 10-s measurements
User-selected averaging times of 1 min, 5 min, or 1 hr
Serial or USB connections for data downloading

Personal Ozone Monitor
1.25A power adapter
7.4V lithium-ion battery
Battery charger
Serial port cable
Serial-USB adapter
USB cable
External ozone scrubber
Hex driver (3/32″)
Hex driver (7/64″)
USB flash drive preloaded with operation manual, other useful documentation, and driver for Serial-USB adapter
NIST-traceable calibration certificate

High-altitude upgrade (25km)
Analog output (0-5 V) upgrade
Pelican-brand carrying case available for purchase
Wall-mount bracket available for purchase

A Model to Evaluate Ozone Distribution and Reaction Byproducts in Aircraft Cabin Environments, J. He, Y. Yin, J. Pei, Y. Sun, Z. Liu, Q. Chen and X. Yang, Indoor Air: International Journal of Indoor Environment and Health (2022) 32, 11. WIleyLink
Vertical Evolution of Black and Brown Carbon during Pollution Events over North China Plain, Q. Wang, L. Wang, C. Gong, M. Li, J. Xin, G. Tang, Y. Sun, J. Gao, Y. Wang, S. Wu, Y. Kang, Y. Yang, T. Li, J. Liu and Y. Wang, Science of the Total Environment (2022) 806, 4, 150950 . Science Direct
Overview of Lake Michigan Ozone Study 2017, C.O. Stanier, R.B. Pierce, M. Abdi-Oskouei, Z.E. Adelman, J. Al-Saadi, H.D. Alwe, T.H. Bertram, G.R. Charmichael, M.B. Christiansen, P.A. Cleary, A.C. Czarnetzki, A.F. Dickens, M.A. Fuoco, D.D. Hughes, J.P. Hupy, S.J. Janz, L.M. Judd, D. Kenski, M.G. Kowalewski, R.W. Long, D.B. Millet, G. Novak, B. Roozitalab, S.L. Shaw, E.A. Stone, J. Szykman, L. Valin, M. Vermeuel, T.J. Wagner, A.R. Whitehill and D.J. Williams, Bulletin of the American Meteorological Society (2021) 102, 12, E2207-2225. AMS Link
Understanding the Local and Remote Source Contributions to Ambient O₃ during a Pollution Episode Using a Combination of Experimental Approaches in the Guadalquivir Valley, Southern Spain, M. in ‘t Veld, C. Carnerero, J. Massagué, A. Alastuey, J.D. de la Rosa, A.M. Sanchez de la Campa, M. Escudero, E. Mantilla, G. Gangoiti, C. Pérez García-Pando, M. Olid, J.R. Moreta, J.L. Hernández, J. Santamaría, M. Millán and X. Querol, Science of the Total Environment (2021) 777, 144579. ScienceDirect
Air Quality Monitoring Using an Environmental Drone, M. Hayasaki, JARI Research Journal (2021), 20211001, 14 pp. 2BTechLink

Specifications

Spec Sheet

Measurement Principle	UV Absorption at 254 nm
Federal Equivalent Method (FEM)	Yes, EQOA–0815–227
Linear Dynamic Range	0 ppb to 10 ppm
Resolution	0.1 ppb
Precision (1σ rms noise)	Greater of 1.5 ppb or 2% of reading
Accuracy	Greater of 1.5 ppb or 2% of reading
Limit of Detection (2σ)	3.0 ppb (10-s measurement mode, with default adaptive filter settings)
NIST-Traceable Calibration	Yes
Measurement Intervals	Measurement mode: 10 s (Fast mode: 2 s)
Flow Rate (nominal)	~0.8 Liter/min
Flow Rate Requirement	>0.5 L/min
Baseline Drift	< 2 ppb/day < 5 ppb/year
Sensitivity Drift	< 1%/day < 3%/year
Measurement Time, Frequency	10 s, 0.1 Hz (Fast mode: 2 s, 0.5 Hz)
Response Time, 100% of Step Change	For 10-s output: 20 s, 2 points (For 2-s output: 4 s, 2 points)
Averaging Times	1 min, 5 min, 1 hr
Data Storage	8,192 lines (2-s fast mode ~4.6 hr; 10-s meas. mode ~1 day; 1-min avg ~6 days; 5-min avg ~1 mo; 1-hr avg ~1 yr)
Ozone Units	ppb
Pressure Units	torr
Temperature Units	K
T and P Corrected	Yes
Operating Temperature Range	0 to 50 °C
Operating Altitude/Pressure Ranges	~0-13.5 km (150-1,013 mbar) [modifications for higher altitudes available as an option]
Power Requirement; Supplied by battery or 110/220 VAC Power Pack	7-12 V dc, nominally 250 mA at 12 V, 3.0 watt
External Battery	7.4 Volt, 1.6 amp hour, Lithium Ion Battery, 5-8 hr
Size	without GPS and battery: 4.0 x 3.0 x 1.5 inches (10.2 x 7.6 x 3.8 cm) add GPS: 5.0 x 3.0 x 1.5 in (12.7 x 7.6 x 3.8 cm)
Weight	without battery: 0.8 lb (0.36 kg) with battery: 1.0 lb (0.45 kg)
Data Transfer Baud Rate	19200
DewLine™	Yes
GPS	Yes
Options	Analog output; wall-mount bracket; modifications for higher altitude operation; Pelican-brand carrying case

Downloads

Brochure

User Manual

More Downloads

Support



Call Us

+1 (303) 273-0559

Case Studies

All Case Studies

What Happens to Ozone Inside a Ship Plume?

Products: POM

Category: Ambient Ozone Monitor

Application: Ambient Air

In this study, the 2B Tech Personal Ozone Monitor (POM) was flown on a drone above Chesapeake Bay, to investigate the chemistry inside the plume of a large freighter at sea. The versatility of the POM was showcased in this work, which also made use of another POM to make complementary measurements at a ground station nearby.

Instructions

Please use the following web form to open a service ticket for calibration and/or repairs on your instrument, and be sure to provide its serial number.

If you are experiencing problems with your instrument, it will greatly aid our troubleshooting efforts if you would:

Use the serial connection of the instrument to capture sample data,
Save the (raw, unmodified) data in a text file,
Upload the file as an attachment and submit it with your service ticket.
